Auto Parts Hydraulic Hose Pressing Machine For Air Suspension Air
Strut Air spring
Quick Details:
Description: Auto Parts Hydraulic Hose Pressing Machine For Air Suspension Air
Strut Air spring
Crimping Force: 100T
Crimping Range: 20mm-175mm
Standard Die Sets: 12 sets
Voltage: 380V and 220V
Power: 4Kw
System Pressure: 30 Mpa
Accuracy: 0.05mm
Dimension: L850*W900*H1300mm
Gross Weight: 350Kg
Warranty: 12 Months
Appliion: Vehicle Air Suspensions, Air Springs, Industrial Hydraulic Hose and
so on
After Sales Service: We can give technical support for any problem any time
Package: Strong Wooden Box with Pallet

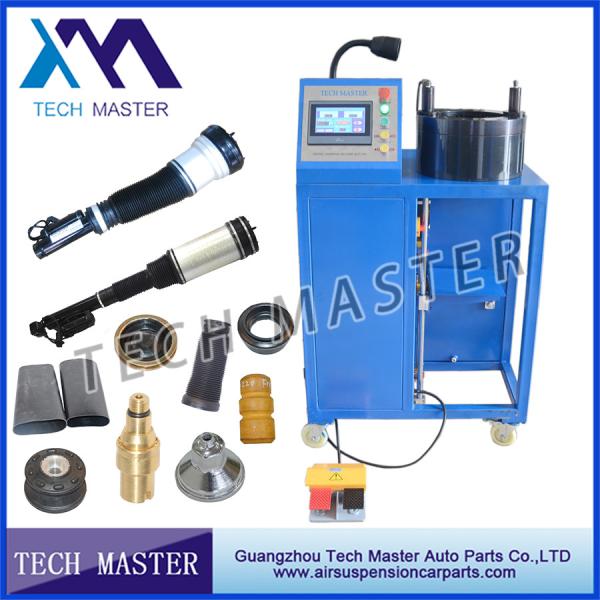

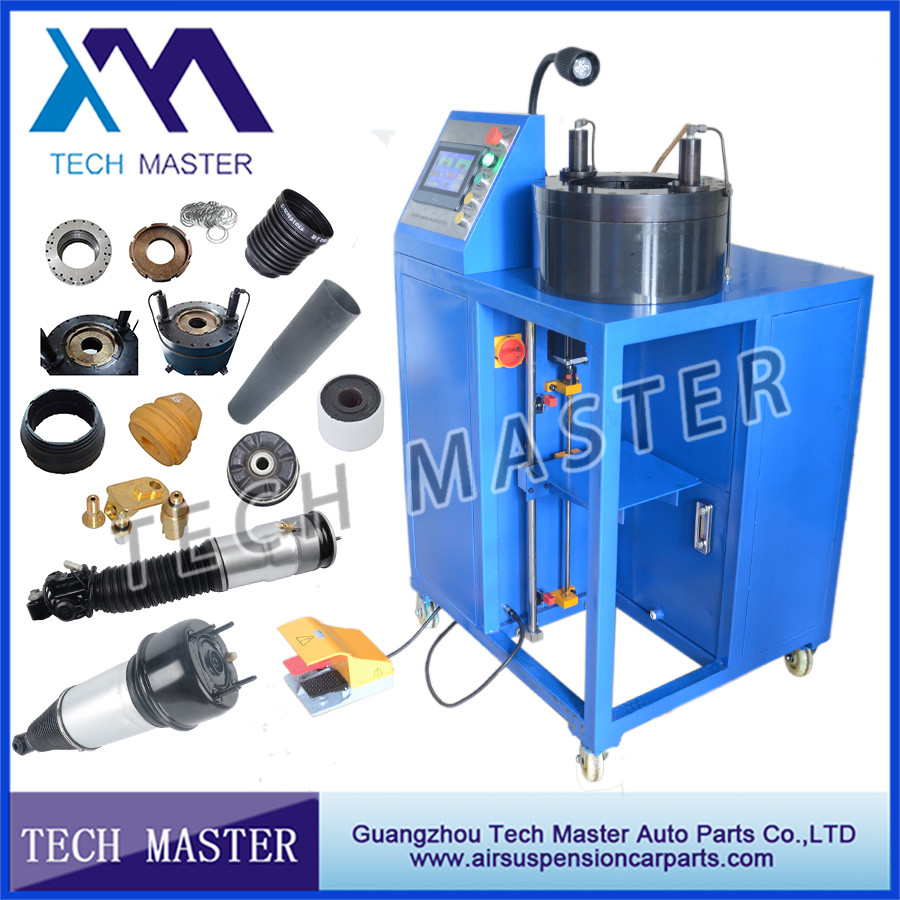

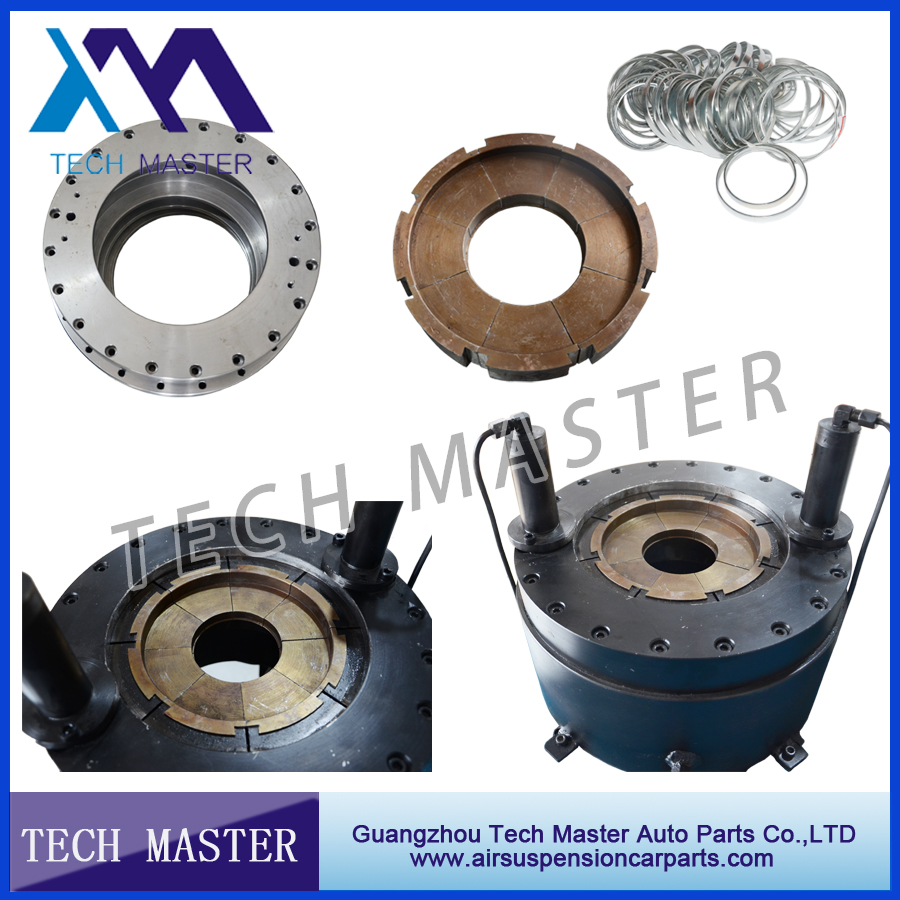

Some Photoes of the Machine and Parts:
Our Customers Normally Ask These Questions About the Machine:
1. What does this machine used for?
it is can be used to repair or manufacture air suspensions, air
aprings for cars and trucks. and aslo the industrial hydraulic hose
pipes.
2. What is Voltage of this machine?
Original Voltage is 380V or 220V, but we can also make according to
your requirements
3. is it simple to learn to opearte this machine?
it is easy for operating. we will give detailed instruction and CD
to show our customers how to operate
4. How to determine the dimensions of the die sets?
we process the die sets according to your dimensions or you tell us
what products you want to crimp, then we can determine the size.
5. how are you going to package the machine to prevent damage
during shipping?
we will pack the machine with strong wooden box with pallet to
insure the safety of the machine during shipping.
6. Which Type of Hydraulic Oil and How Much Oil Should We Add?
Should Use Number 46 or 68 Antiwear Hydraulic Oil and Add 50-60
Litres.
7. How Long Should Change the Oil Inside the Machine?
if you use the machine frequently, should change the oil per year,
if not, can change every 2 years.
Installation and Operation:
1. Regulating the scale
The scale is used for regulating the amount of the buckling. When
it is regulated clockwise, the buckling amount will decrease, when
it is regulated anticlockwise, the buckling amount will increase.
The scale is connected together with oil cylinder end cover through
three socket head screws and three springs on the scale base. When
using a hand to pull the scale (vertical to the oil cylinder end
cover direction), the scale can flexibly leave from the oil
cylinder end cover. When releasing the scale, the scale will be
recovered relying on spring force. Before the machine is turned on,
inspect carefully if the scale telescoping is flexible and if the
lead connection is reliable.
2. The primary scale is turned within 0 line of the secondary
scale, turn the machine on for test run, and observe if all actions
are normal. If when the piston conducts reciproing movement, there
is a crawling phenomenon, the bleed screw on the oil cylinder top
shall be unscrewed for exhausting air.
3. Pressure regulation
The buckling pressure and opening mould pressure will be regulated
through two knobs at the back of the oil cylinder, when it is
regulated clockwise, the pressure will increase, when it is
regulated anticlockwise, the pressure will decrease (The pressure
has already been well regulated when ex-factory).
4. Operation
Based on the size of the rubber hose to be buckled, select suitable
mould as per the technical parameter reference table of the locking
pipe and mount it on the mould base. Regulated well the scale
position as per the data in the data in the table, the pipe locking
can be done. After pipe locking, use a vernier caliper to mease the
outside diameter dimension of the pipe sleeve after buckling to see
if it meets the reference table data of the parameter. If it does
not meet the data, the scale shall be precisely regulated until it
meets the requirements. Because the manufactures of the pipe sleeve
are different, so, specific dimension, material, hardness etc are
certainly not the same. These factors would result different
influences on the pipe locking result, therefore, the data in the
table is only for reference, the detailed data take the pressure
test as the basis.
Notices:
1. Add sufficiently 25g of 46# anti-abrasion hydraulic oil.(the
original is the best).
2. When buckling, make the joint to loe the mould center as much as
possible, the joint is not buckled on the hex nut.
3. Prevent tool and other foreign matter from entering the locking
head.
4. After the work is finished for each time, the eight-block mould
base must be made to extend to the greatest extent, this can make
the spring to be at extension status. If not, the spring will be
damage.
5. When working, the hand should not stretch into the locking head.
6. The power supply must be switched off when maintenance is done.
7. Be careful that three-phase machine can’t be in reverse.
(Overhead view: motor fan rotates in clockwise direction that is
the forward direction.)
