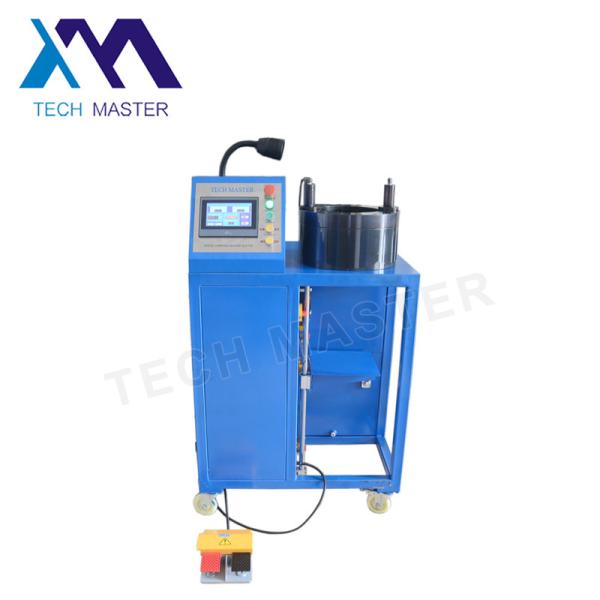

Portable Hydraulic Hose Crimping Machine For Mercedes,BMW, Air
Suspension Manual Crimping Machine
Production Description:
Crimping force :100T
Max opening: 185mm
Crimping range : 20mm-185mm
Standard dies set: 10(size customized)
Voltage: 220V/380V
Syestem pressure: 30Mpa
Operate mode: auto ,manual,pedal
Weight: 350-380KG
Dimension: L850*W900*H1300mm
Crimping Way: Transverse withhold
| Crimping force | 100T |
| Max opening | 185mm |
| Crimping range | 20mm-185mm |
| Standard dies sets | 10 (size customized) |
| Voltage | 380V , 220V |
| System pressure | 30Mpa |
| Operate mode | auto, manual, pedal |
| Weight | 350-380kg |
| Dimension | L850*W900*H1300mm |
| crimping way | Transverse withhold |
| Delivery: | In stock, delivery at customer's request |
| Validity | Within 1 months |
| Power | 4kw |
| Accurracy | 0.05mm |
We also supply many types air suspension shock
| Air Suspension Shock Absorber For Mercedes |
| W230 | A2303200438 A2303200338 A2303208613 A2303208513 |
| W251 | A25132019312513203013 2513200425 2513203113 |
| W164 | 1643206013 1643206113 1643202031 1643200625 |
| W220(4 Matic) | A2203202238 A2203202138 2203202138 2203202238 |
| W220 | 2203202438 2203205013 |
| W221(4 Matic) | A2213200438 A2213200538 2213200438 2213200538 |
| W221 | A2213205613 A2213205513 2213205513 2213205613 |
| W211 | A2113206113 A2113206013 2113209413 2113209313 |
| Air Suspension Shock Absorber For BMW |
| F02 | 37126791675 37126791676 |
| E66(with ADS) | 37126785535 37126785536 |
| E65 E66 | 37126785537 37126785538 |
| E53 X5 Front | 37116757501 37116757502 37116761443 37116741444 |
| E39 | 37121094613 37121094614 |
| E53 X5 Rear | 37126750355 37121095579 37126750356 37121095580 |
| Air Shock Absorber For Land Rover |
| L322 | RNB000740G RNB000750G L2012885 |
| Sport L320 | LR019993 LR023234 |
| Discovery 3 | RNB501580 RTD501090 |
| III HSE Vogue | LR012885 LR032567 LR012859 LR032560 |
Airmatic Shock Absorber For Audi |
| A6 4F C6 AVANT) | 4F0616039AA 4F0616040AA |
| Q7(Front) | 7L6616039D 7L6 616 040D |
| Q7(Rear) | 7L5616019D 7L5616020D |
| Q7 New model(Front) | 7P6616039N 7P6616040N |
| A8 D3 Front | 4E0616039AF 4E0616040AF |
| A8 D4 | 4H0616039AD 4H0616040AD |
| (Front) | 3D0616039D 3D0616040D 3D0616001J 3D0616002J |
| A6 C5 Allroad | 4Z7413031A 4Z7616051B 4Z7616051D 4Z7616052A 4Z7616051A |
| A8 D3 rear | 4E0616001E 4E0616002E |
Our Customers Normally Ask These Questions About the Machine:
1. What does this machine used for?
It is can be uased to repair or manufacture air suspension, air
spring for cars and truck. And also the industril hydraulic hose
pipes
2. What is Voltage of this machine?
Original Voltage is 380V, but we can slao make according to your
requirements.
3. Is it simple to learn to operate this machine?
It is easy for operating. We will give detailes instruction and CD
to show our customers how to operate.
4. How to determine the dimensions of the die sets?
We process the die sets according to your dimendions or you tell us
whta products you want to crimp, then we can determine the size.
5. How are you going to package the machine to prevent damage
during shipping?
We will pack the machine with strong eooden box with pallet to
insure the safety of the machine during shipping.
